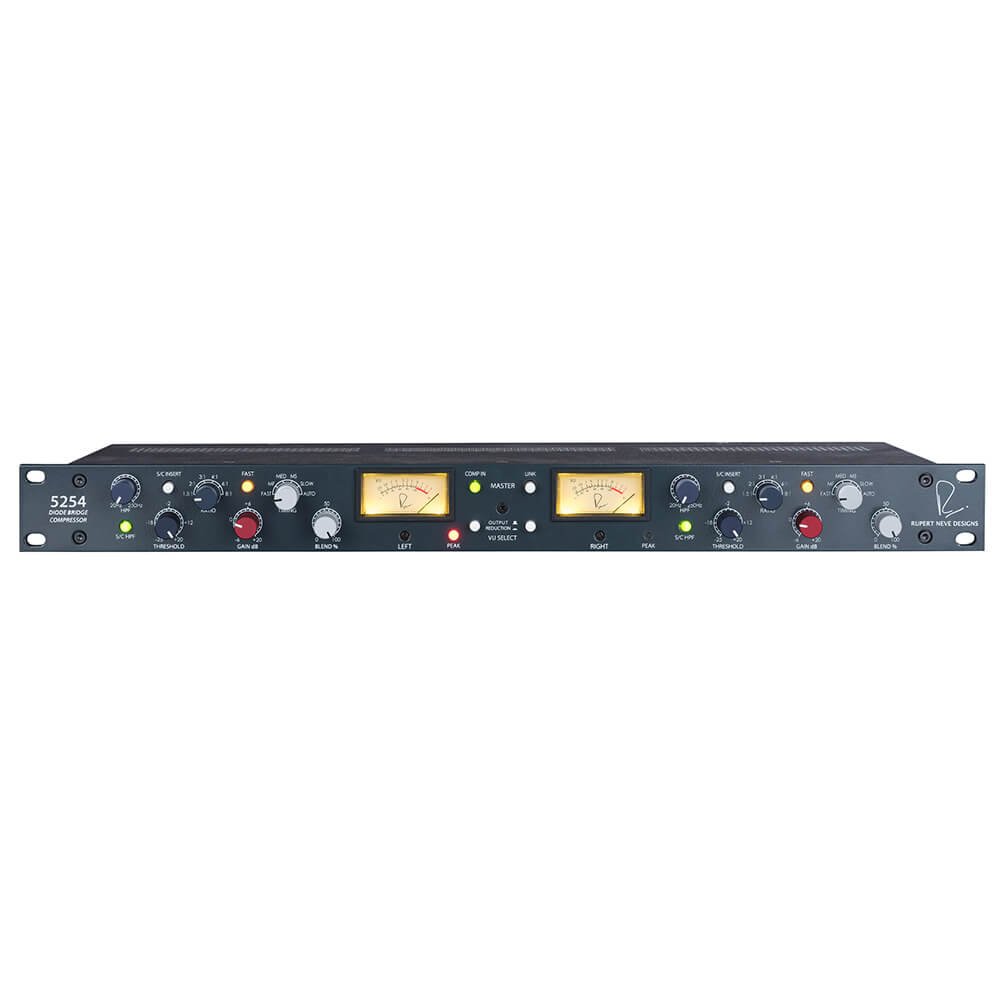

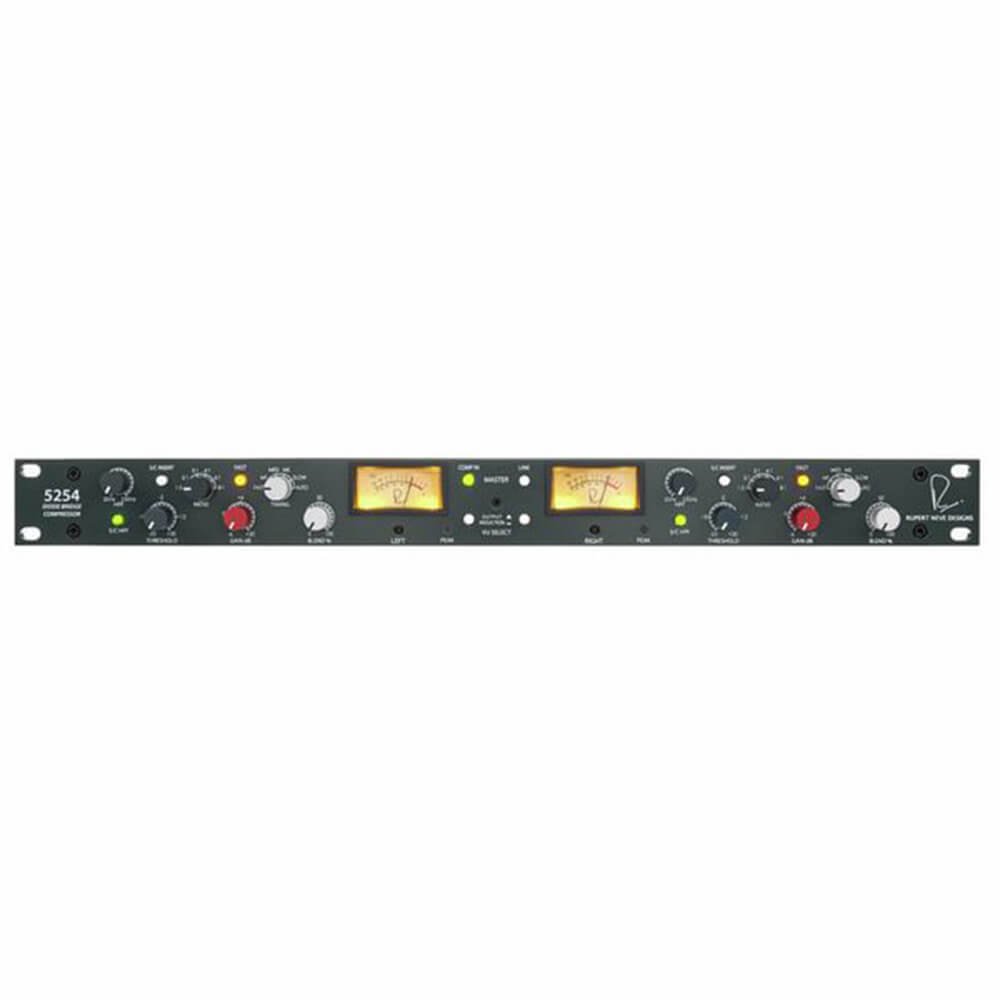

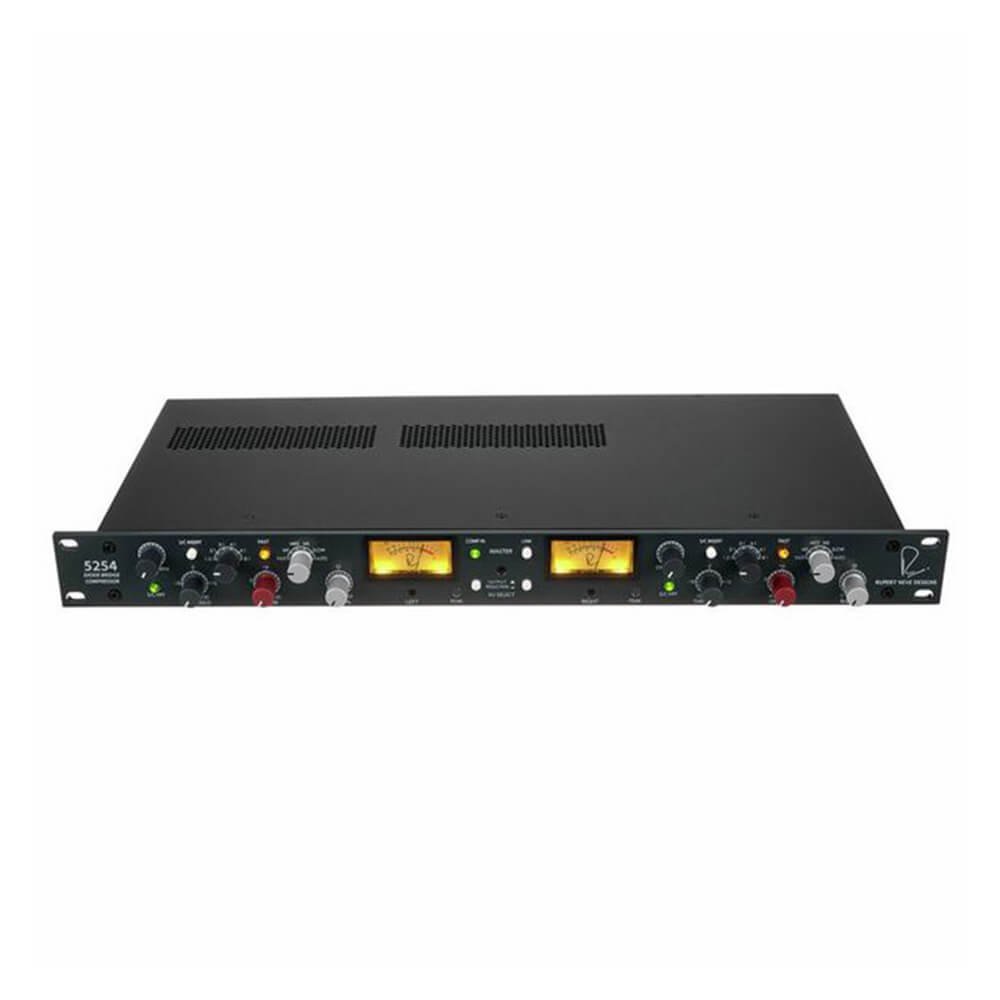

Rupert Neve Designs 5254 Dual Diode Bridge Compressor Overview

The 5254 Diode Bridge Compressor by Rupert Neve Designs is based on the topologies found in the renowned old Neve 2254 80 Series console module, but has been upgraded and improved for the current studio. Whether you’re tracking, mixing, or mastering, the 5254 will astound and thrill you with its capabilities. This two-channel dynamics powerhouse, outfitted with RND custom transformers and Class A output amplifiers, captures the soul of the classic 2254 to deliver the attitude-packed, in-your-face sound that has pumped up countless hit records, but with modern precision and flexibility (including full sidechain, parallel processing, and stereo link functionality), making it ideal for any source, whether individual tracks, stems, or stereo masters. Rupert Neve Designs’ 5254, a master bus compressor, adds glue and punch to your mixes, crystallizing them into outstanding

Classic diode bridge, redesigned for the contemporary studio.

Rupert Neve’s classic diode bridge compressors (most notably the 2254) inspired the creation of the 5254. A half-century later, with modern engineering insight into the limitations of the original 2254 topology, meticulous effort was expended to reproduce the 2254’s distinct sound while improving the noise floor, expanding the rigid time constants, adding full-wave (rather than half-wave) sidechain detection for enhanced dynamic response, broadening the range of the threshold and ratio controls, and increasing the headroom of the diode bridge. The 5254, which combines the strong sound of these classic designs with more versatility for the modern studio, is a must-have tool for producing ambitious musical statements.

Timing is everything.

The 5254’s unified Timing control has six configurable settings, specifically calibrated for varied applications – a substantial improvement over the fixed attack of the ancient 2254. The Fast and MF settings are particularly effective in clamping down on transient-heavy signals like as drums, plucked strings, and enunciated vocals. In contrast, the Med and MS settings have somewhat slower attack and release periods as well as slightly longer recovery durations to enable more transients to pass through. Finally, the Slow and Auto settings are substantially slower, allowing for smooth level management.

The ideal mix

Engineers have long regarded diode bridge compression’s heavy, harmonically rich tone as a good technique to bring crucial sounds like lead vocals, electric guitars, bass, and drums to the forefront of a mix. Given the inherent coloring of the 5254’s diode bridge design, the unit’s inbuilt parallel compression knob is quite handy. The Blend control allows you to immediately mix tiny amounts of strong compression with your dry, unaffected output to provide a best-of-both-worlds sound that preserves natural transients and dynamic range while giving blendable, larger-than-life thickness, weight, punch, and color.

Sidechain inserts for creative ducking.

Every dynamics processor contains a sidechain circuit that checks the signal and calculates how much gain will be reduced; however, not all units allow access to their sidechain. In compressors without a separate sidechain input, the primary input signal compresses itself. With compressors like the 5254, you may add extra processing to the sidechain or introduce a new signal that controls the compression action on the main signal. It’s a fantastic function that allows you to automatically duck one track to make room for another (which is particularly popular for the EDM mix pumping effect). When combined with its per-channel sidechain HP filters, the 5254’s sidechain inserts provide a surprising level of adaptability.

Sidechain Highpass Filter

The HPF knob, which is constantly adjustable from 20Hz to 250Hz, lets you to add a 12dB/octave highpass filter to the compressor sidechain. With the S/C HPF button activated, the compressor will be significantly less sensitive to information below the frequency you have set. For example, when applied to a drum kit with a frequency set to 150Hz, the bottom end of the bass drum has less influence on compression action than a snare drum or cymbals, because a large portion of the bass drum’s dynamic energy lies below 150Hz.

The legend continues.

Rupert Neve’s 80 Series consoles produced a massive, powerful, and authoritative sound that characterized the sound of 1970s rock. From London to New York to Los Angeles and beyond, leading studios were adding Neve boards as quickly as possible. By 1977, with the advent of the NECAM automation system, 80 Series boards had become the cornerstone of every recording studio with world-class ambitions. Mr. Neve’s current firm, Rupert Neve Designs, continues to push the envelope with cutting-edge devices that sound fantastic and intelligently meet the issues of the digital era. With your Rupert Neve Designs 5254, the legacy continues.

Rupert Neve Designs 5254 Dual Diode Bridge Compressor Features:

•  Two channels with improved diode bridge topology for current studios.
•  Produces a powerful sound similar to popular songs.
•  Customize compression envelope shape with advanced timing adjustments to get diverse responses.
•  Custom RND transformers and Class A line amplifiers provide vintage warmth with more headroom.
•  The 31-step rotary switches have detented steps for perfect channel matching and setting recall.
•  Onboard Blend control enables immediate parallel compression.
•  Rupert Neve Designs 5254 Dual Diode Bridge Compressor Specifications:
•  Two channels with improved diode bridge topology for current studios.
•  Produces a powerful sound similar to popular songs.
•  Customize compression envelope shape with advanced timing adjustments to get diverse responses.
•  Custom RND transformers and Class A line amplifiers provide vintage warmth with more headroom.
•  The 31-step rotary switches have detented steps for perfect channel matching and setting recall.
•  Onboard Blend control enables immediate parallel compression.
