Give your songs full impact

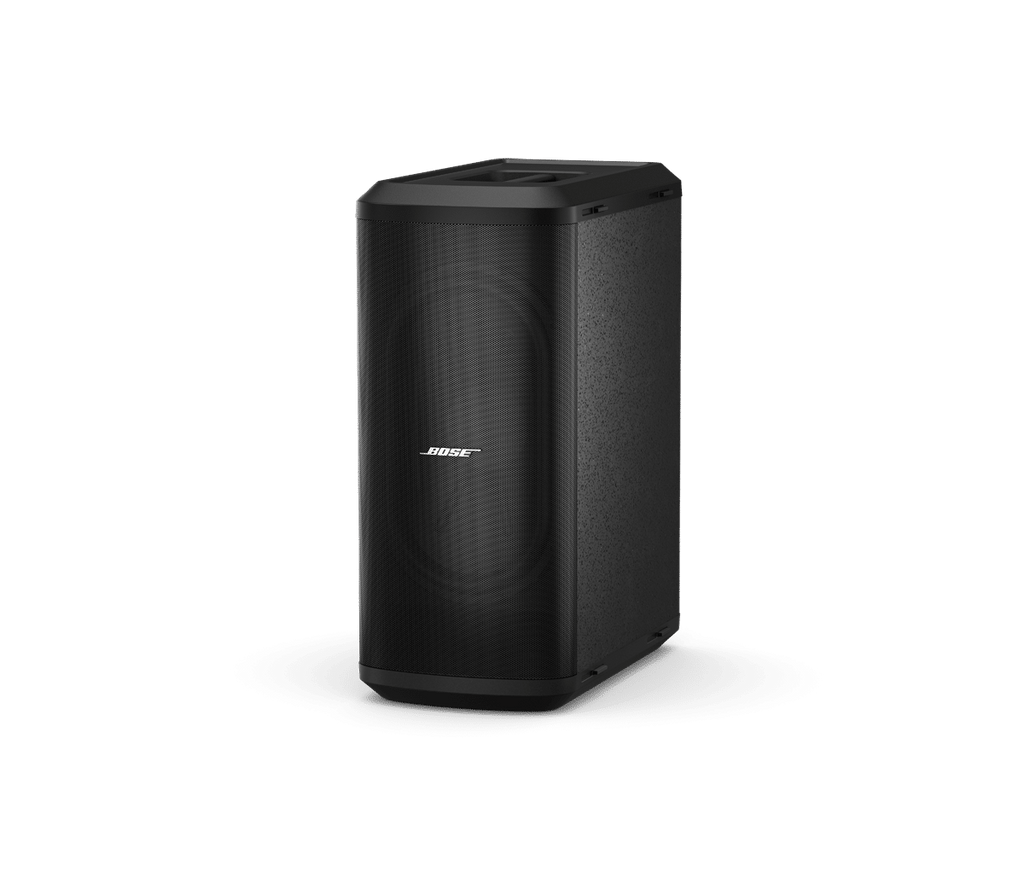

Sub2 Powered Bass Module combines with virtually any portable PA to deliver low end down to 37 Hz. When paired with the Bose L1 Pro32, Sub2 plays lower and louder and gives you bold bass from slim design that goes virtually anywhere.

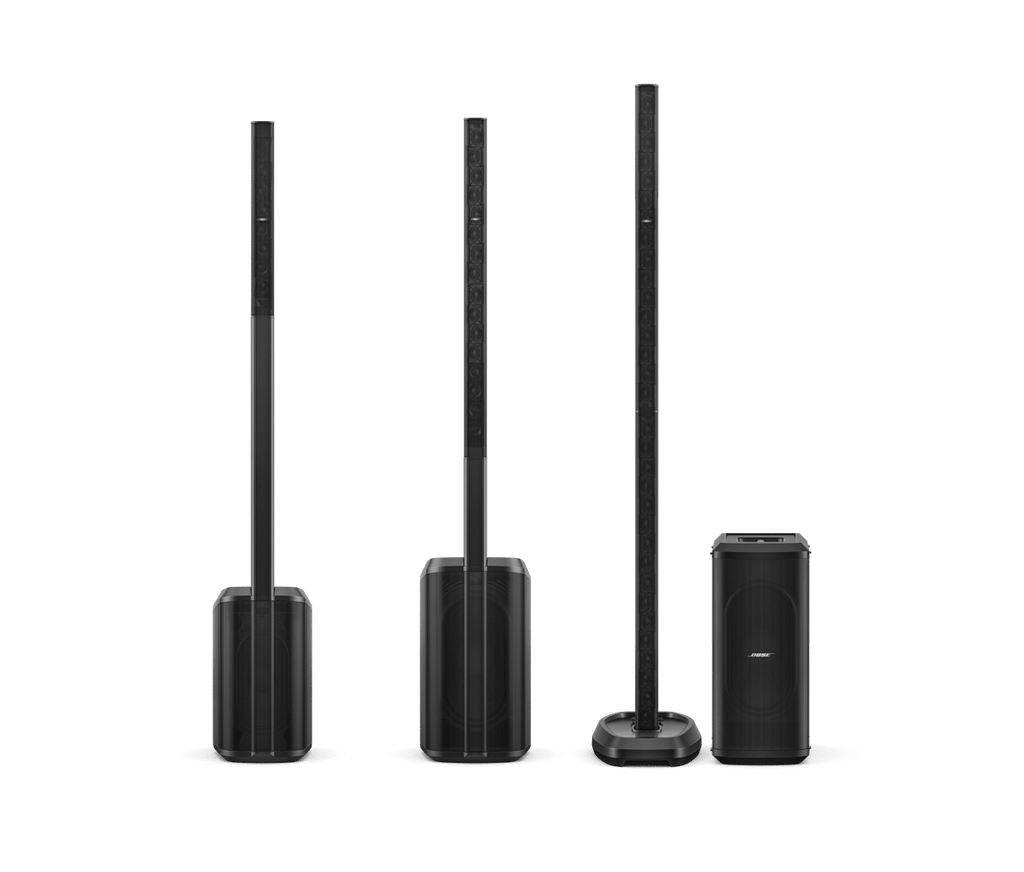

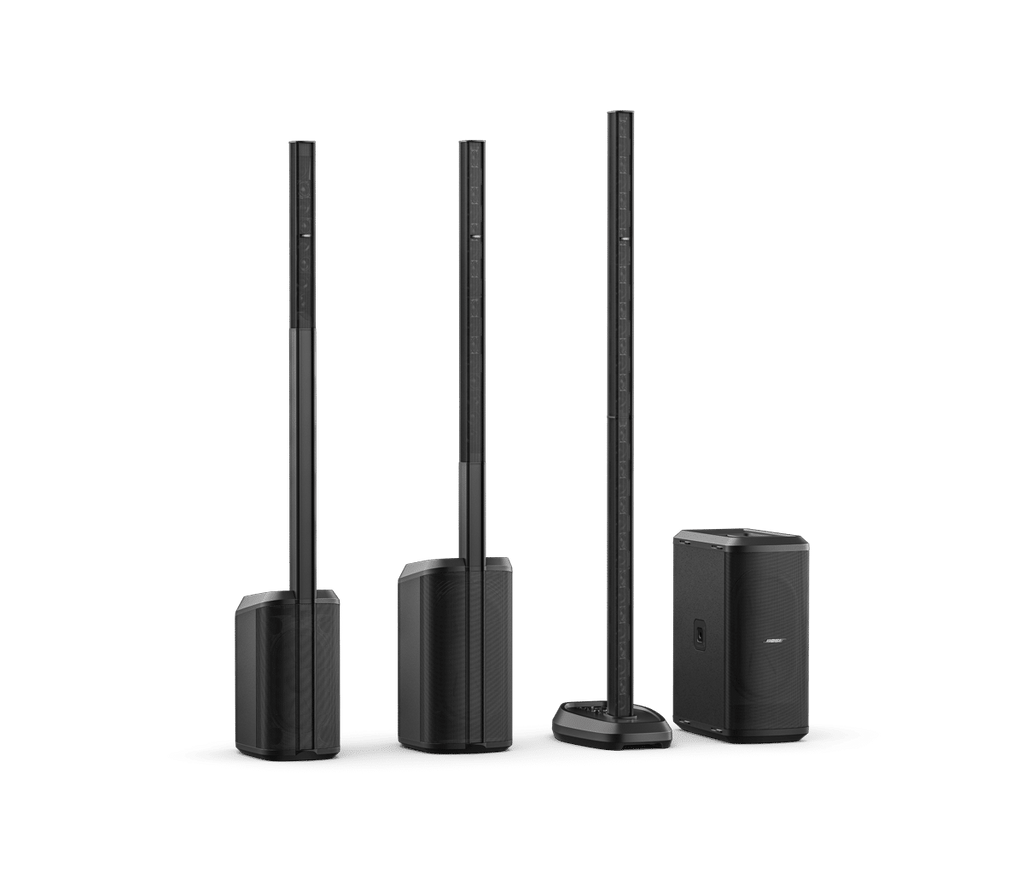

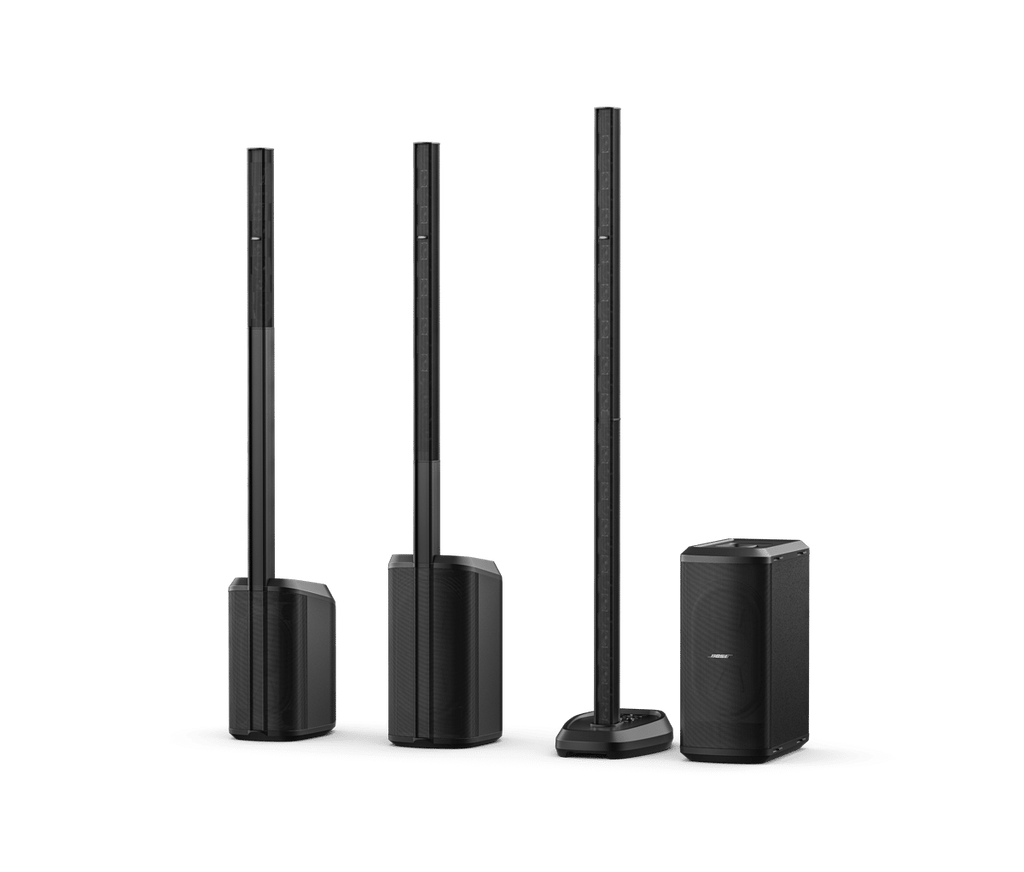

Part of a full system

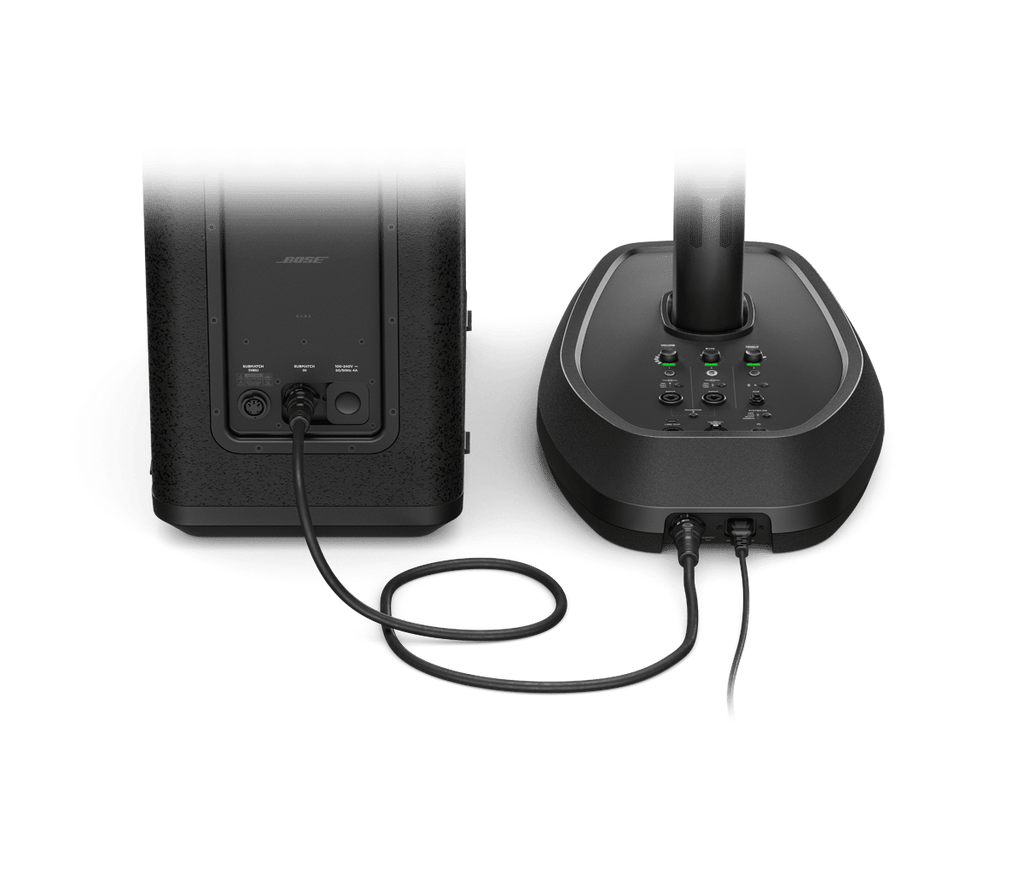

Sub2 pairs seamlessly with the L1 Pro32 via proprietary SubMatch connectivity to form a modular line array system that’s easy to pack, carry, and set up. This single-cable connection makes setup so much easier. It allows the system’s crossover and EQ to automatically calibrate for optimal sound, and — because power and digital audio are passed through the SubMatch cable — you only need a single power outlet. Just plug in your L1 Pro32 and you’re ready to go.
More bass. Less bulk.

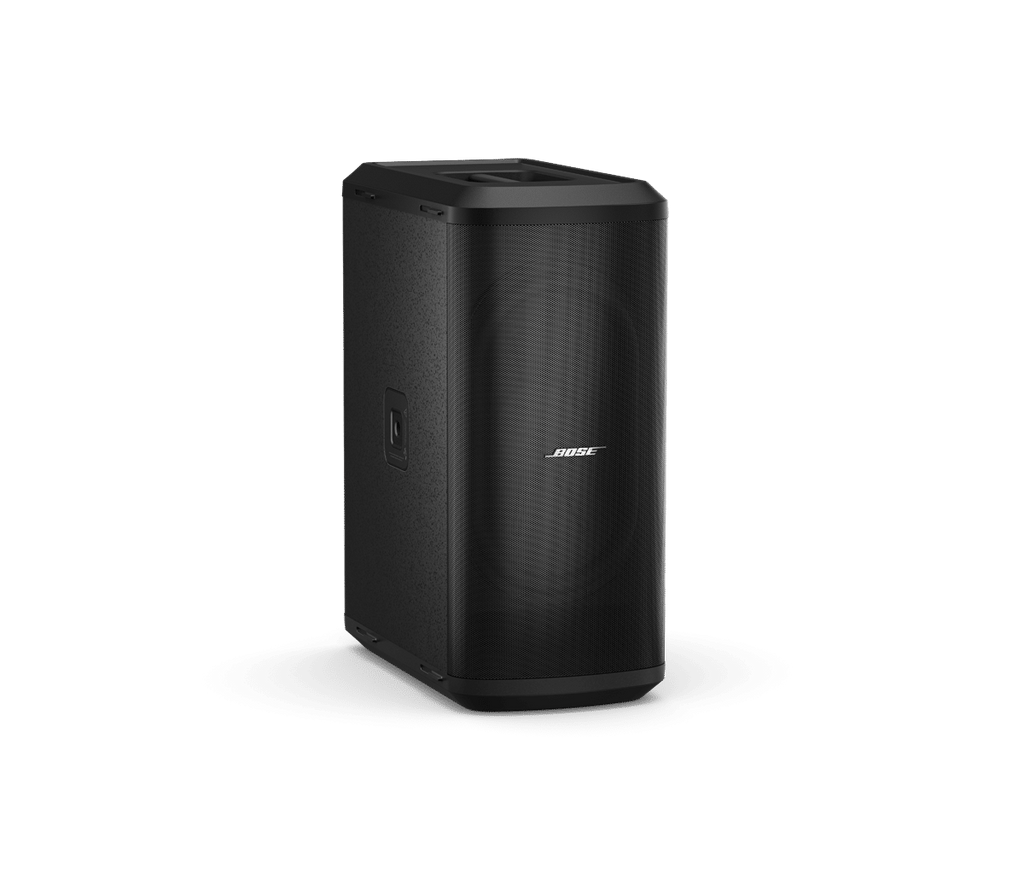

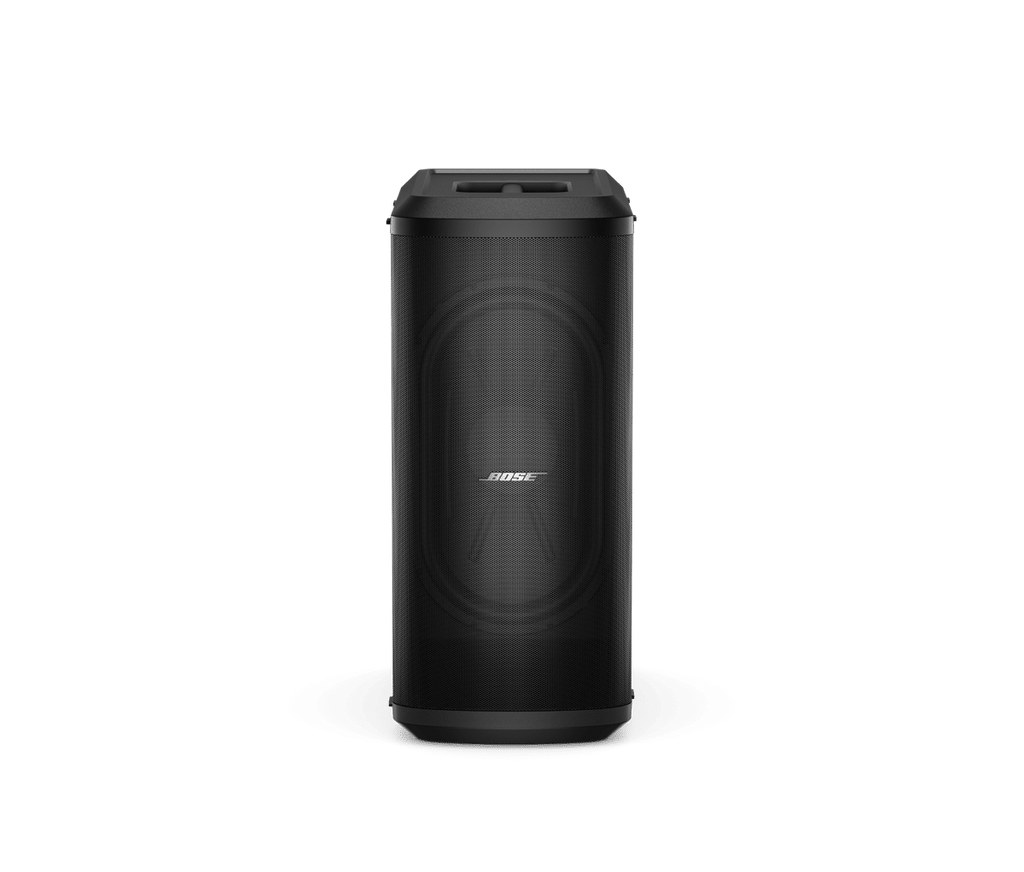

With a unique RaceTrack driver design, Sub2 offers powerful bass and an optimized center of gravity. The driver’s shape allows the physical enclosure of Sub2 to be slimmer without compromising sound. This frees up room in your vehicle and on the stage, and makes every carry in between — home to car, vehicle to venue — much easier.
Focus the bass where you want it

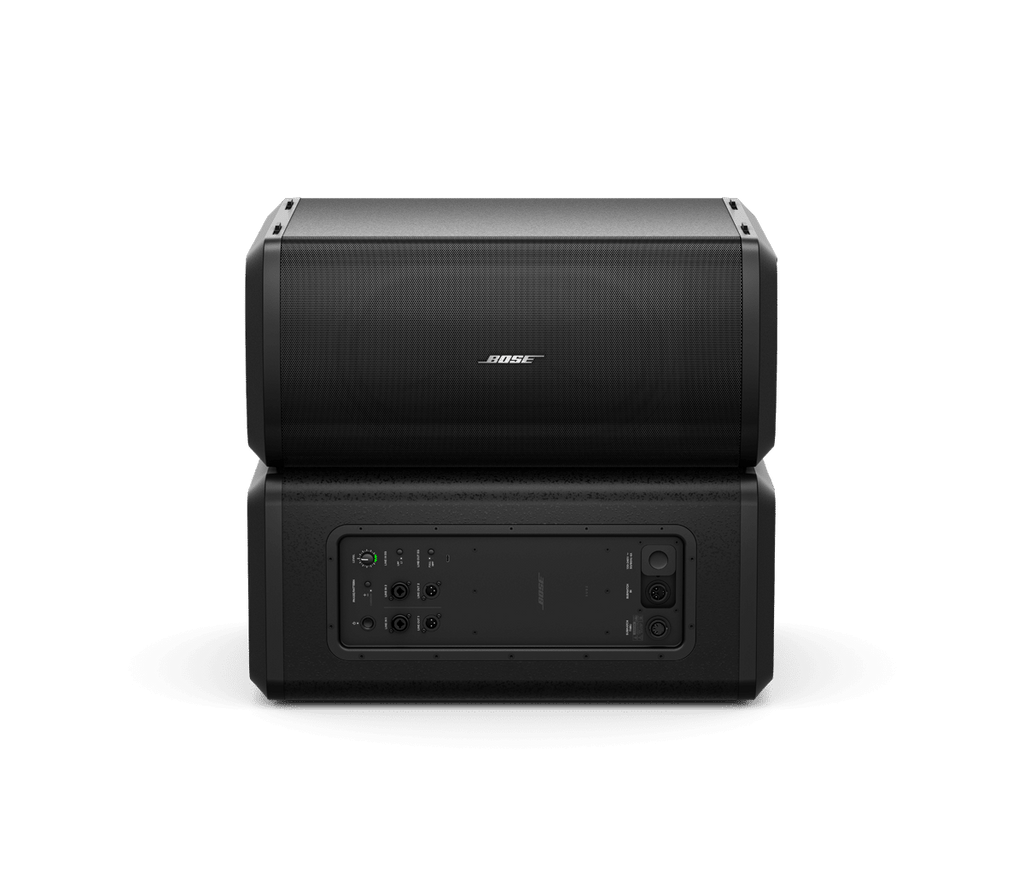

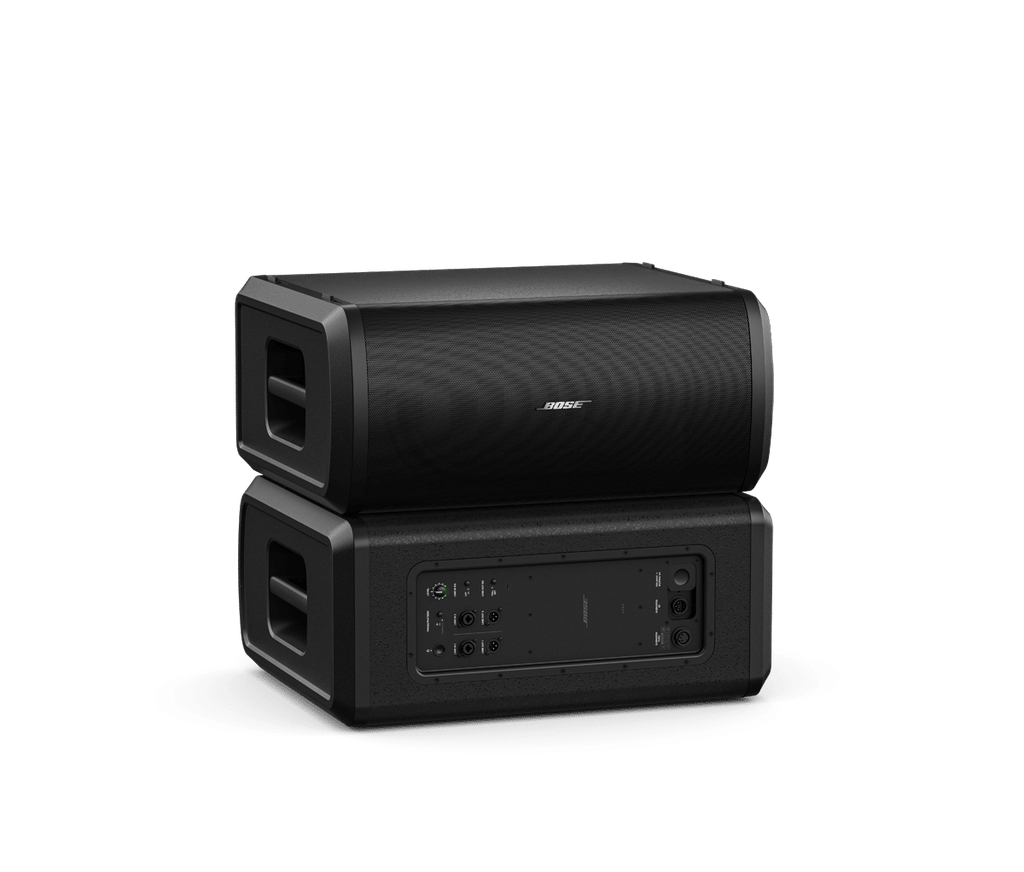

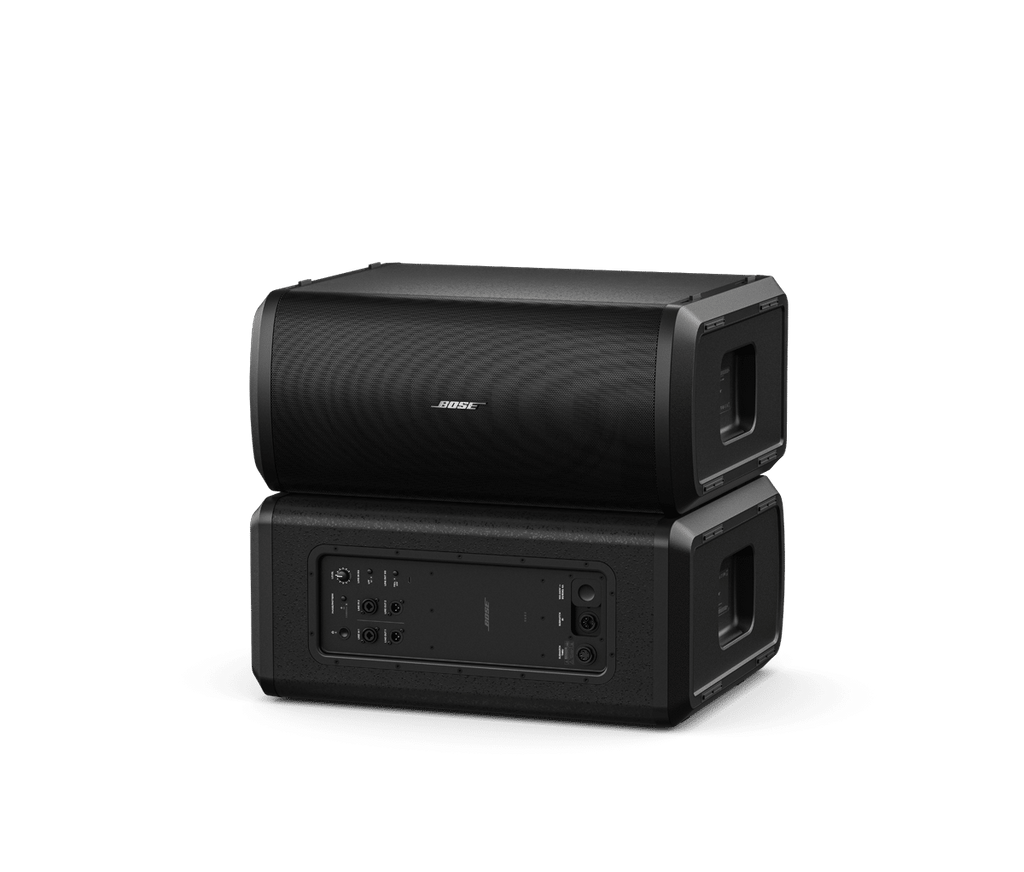

Stack two Sub2 subwoofers for even more bass or to unleash Cardioid Mode for focused, directional performance that negates rear-firing bass energy, steers the bass out front, and reduces feedback.
All for that Moment
Premium sound on stage. Practical portability everywhere else. With an Sub2 Powered Bass Module, you can get from parking to performing in one trip and from setup to setlist in minutes. The Sub2 Powered Bass Module gives singer-songwriters and DJs both setup simplicity and supreme clarity – the power to sound your best and simply perform.
Features
Add powerful bass to your portable PA system with low-end range down to 37 Hz
Go from vehicle to venue easily with a slim design featuring a unique 10 × 18-inch high-excursion neodymium RaceTrack driver; performance that rivals traditional round drivers with a smaller footprint
Stack multiple Sub2 subwoofers for even more bass or unleash Cardioid Mode for focused, directional performance that steers the bass out front and decreases feedback
Combine seamlessly with Bose L1 Pro32 portable line array via proprietary SubMatch connectivity, which delivers both power and audio over a single cable
Pair with other powered loudspeakers via line input and output with selectable crossover modes, plus integrated threaded pole mount for use with Bose S1 Pro PA and more
Applications
Designed for a wide range of applications, including:
- Houses of worship
- Schools and universities
- Resorts and hospitality venues
- Live music performances
- Business presentations
- Mobile DJs
Specifications
AMPLIFICATION
Number of Channels
1
Power Class
Class D
AUDIO INPUTS, ANALOG
Input Channels
2
Connectors
(1) XLR-1/4-in TRS combo, (1) SubMatch (proprietary multi-pin cable)
Sensitivity Options
+10 dB to +45 dB, input to driver
Phantom Power
No
ELECTRICAL
AC Power Connector
IEC, SubMatch
AC Power Input
100–240 VAC (±20%, 50/60 Hz)
Current Draw, Inrush
15.2 A at 120 VAC, 60 Hz / 28.6 A at 230 VAC, 50 Hz
GENERAL
Software Applications
Bose Music (Android, iOS)
Computer Interface Connection
USB Type-C
INDICATORS AND CONTROLS

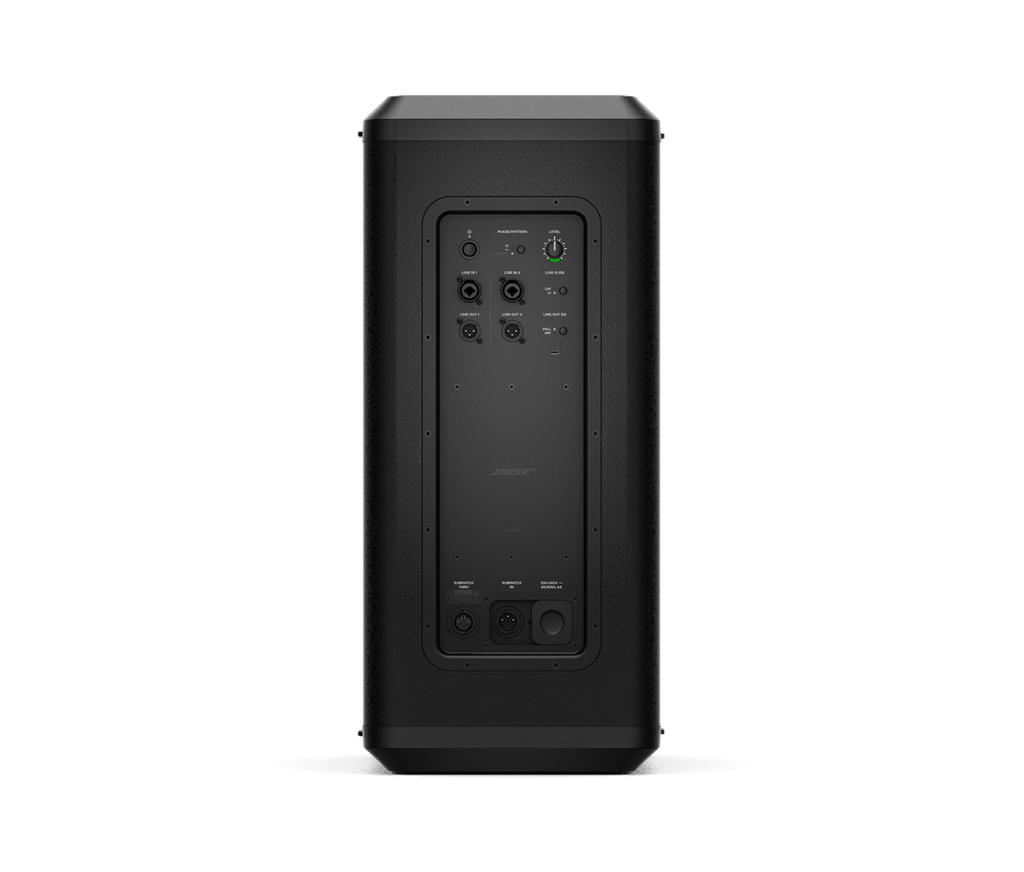

Controls, Rear Panel
Power, EQ, and Volume Control
LED Status Indicators
(1) standby LED, (1) signal/clip LED, (2) input EQ LEDs, (2) output EQ LEDs, (3) phase/pattern LEDs
INTEGRATED DSP
DSP-Enabled
Yes
Processing Functions
Input EQ, output EQ, phase/pattern polarity inversion
PHYSICAL
Colors
Black
Enclosure Material
High-impact polypropylene, birch plywood
Grille
Perforated steel, powder-coated finish
Cooling System
Convection cooling
Product Dimensions (H×W×D)
27.3 in × 12.5 in × 21.7 in (694 mm × 317 mm × 551 mm)
Net Weight
50.7 lb (23.0 kg)
Shipping Dimensions (H×W×D)
26.0 in × 15.2 in × 31.1 in (660 mm × 385 mm × 790 mm)
Shipping Weight
61.0 lb (27.7 kg)
PERFORMANCE
Frequency Range (-10 dB)
29 Hz – 260 Hz
Calculated Maximum SPL @ 1 m
129.8 dB
Power Handling, Peak
1000 W
Coverage, Vertical
Omnidirectional (with -10 dB rear rejection in cardioid mode)
TRANSDUCERS
Crossover
200 Hz
Low-Frequency
1 × RaceTrack low-frequency 10 × 18 in (254 × 457 mm) driver
