High performance and flexibility

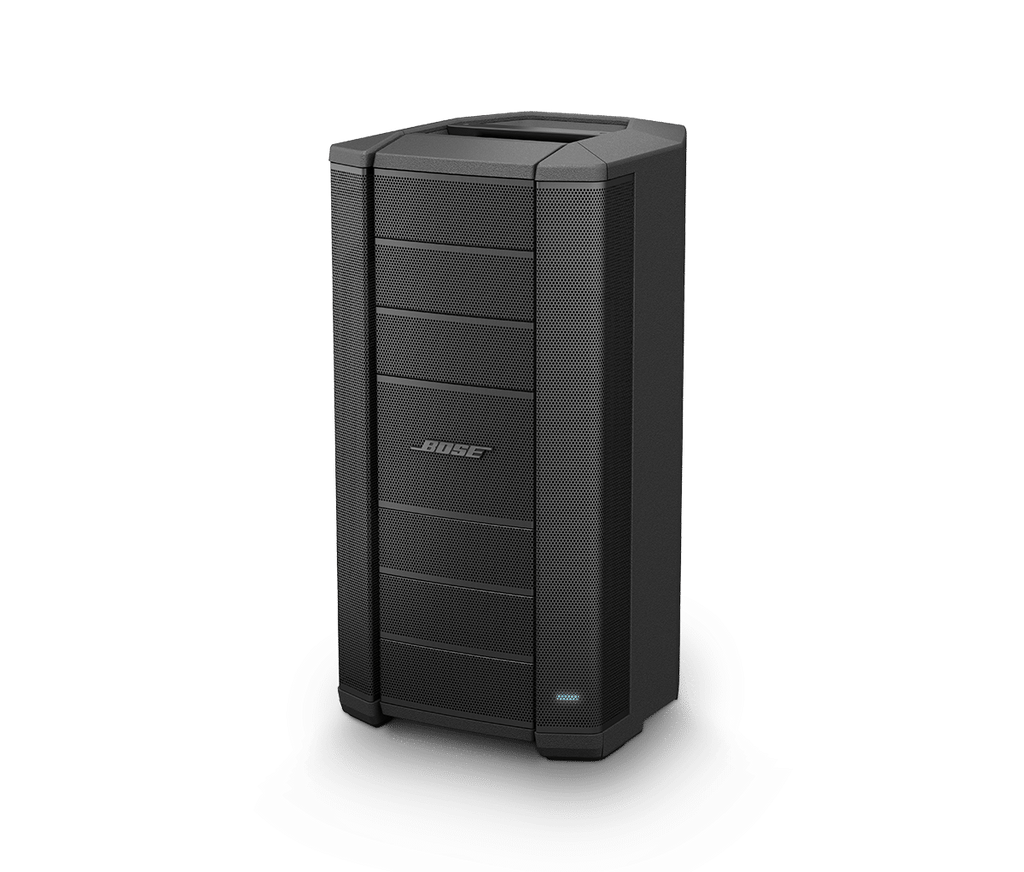

With the Bose F1 Model 812, your sound stands alone.

• Powerful full-range loudspeaker with 132 dB max SPL and low-frequency performance down to 43 Hz (-10 dB)
• Portable, standalone design with built-in 1000-watt amplifier and nine transducers: eight high-output drivers and a 12” high-power woofer
• Optional Bose F1 Subwoofer (sold separately) for even more low-frequency response with integrated speaker stand for F1 Model 812, built-in 1000-watt amplifier, hidden cable channels for clean appearance and built-in handles for easy transport
• Built-in handles for easy transport and compatible with standard 35 mm speaker stands (sold separately)
• Automatic EQ adjusts to maintain optimum tonal balance for each coverage pattern
• Flexible Array technology: easily adjust coverage pattern — Straight, C, J, or Reverse J — to optimize sound for different spaces: floor level, on stage, for raked seats or bleachers, and more
• Lower crossover point than conventional loudspeakers for clear and natural vocals even at high volumes

Quality performance

Engineered with a flexible array of eight high-output mid/high drivers, a high-powered 30.48 cm woofer, a lower crossover point and 1,000-watt amplifier, the loudspeaker delivers high SPL performance while maintaining vocal and midrange clarity that’s dramatically better than conventional loudspeakers.

How it works

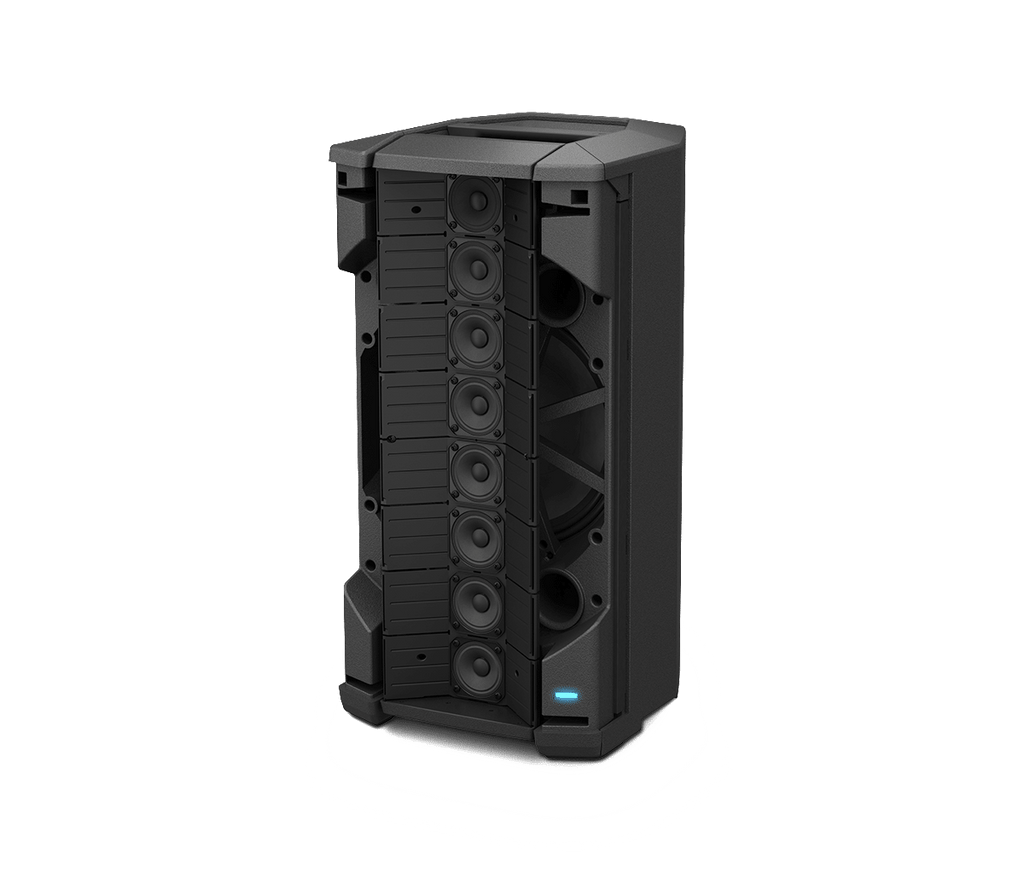

The eight drivers on the F1 Model 812 Flexible Array loudspeaker are mounted on a specially designed flexible baffle. Simply push or pull the array into position to create four vertical coverage patterns: “Straight,” ”J,” “Reverse J” or “C.” Once set, the system automatically changes the EQ to maintain optimum tonal balance for each unique coverage pattern.

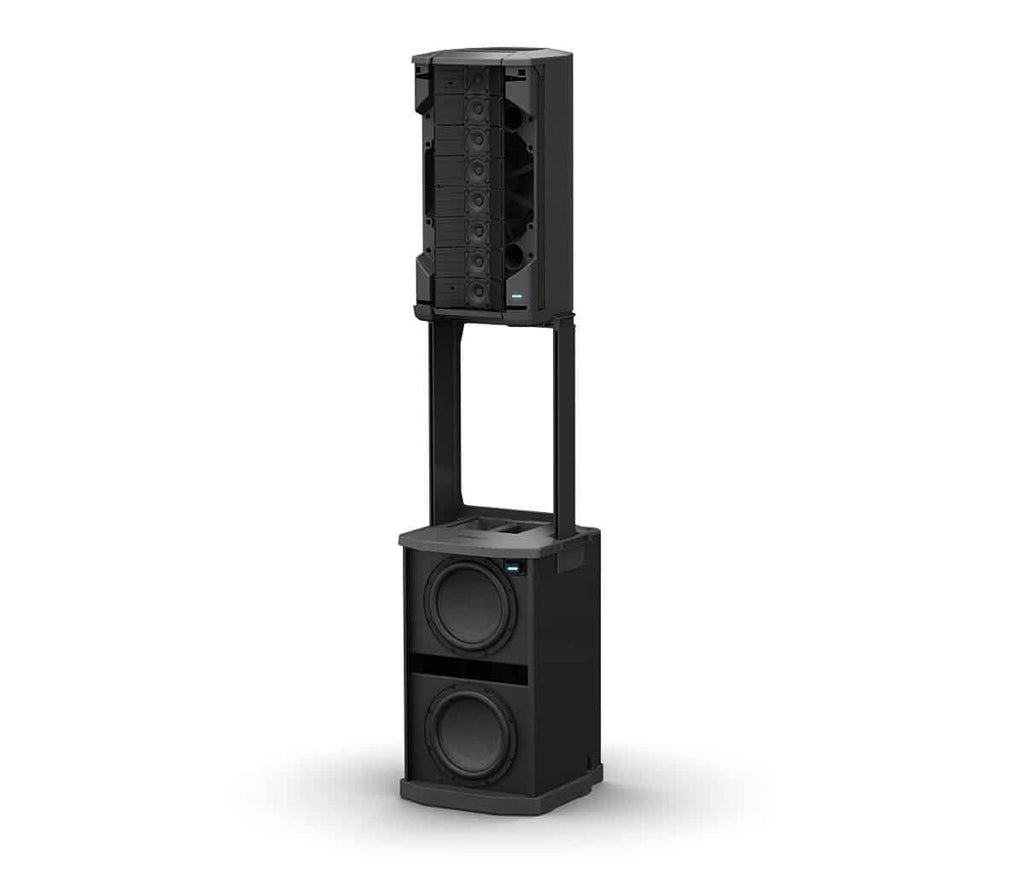

For extended bass

When you need more powerful bass, simply add the Bose F1 Subwoofer. It packs all the power of a larger bass box into a more compact design that’s easier to carry and fits in a car. A mounting stand for the loudspeaker is integrated right into the body of the subwoofer, so you always know where it is, making setup fast and easy. The stand even includes cable channels to neatly hide the wires.

The loudspeaker and subwoofer each have 1,000 watts of power, so you can fill nearly any venue with sound.

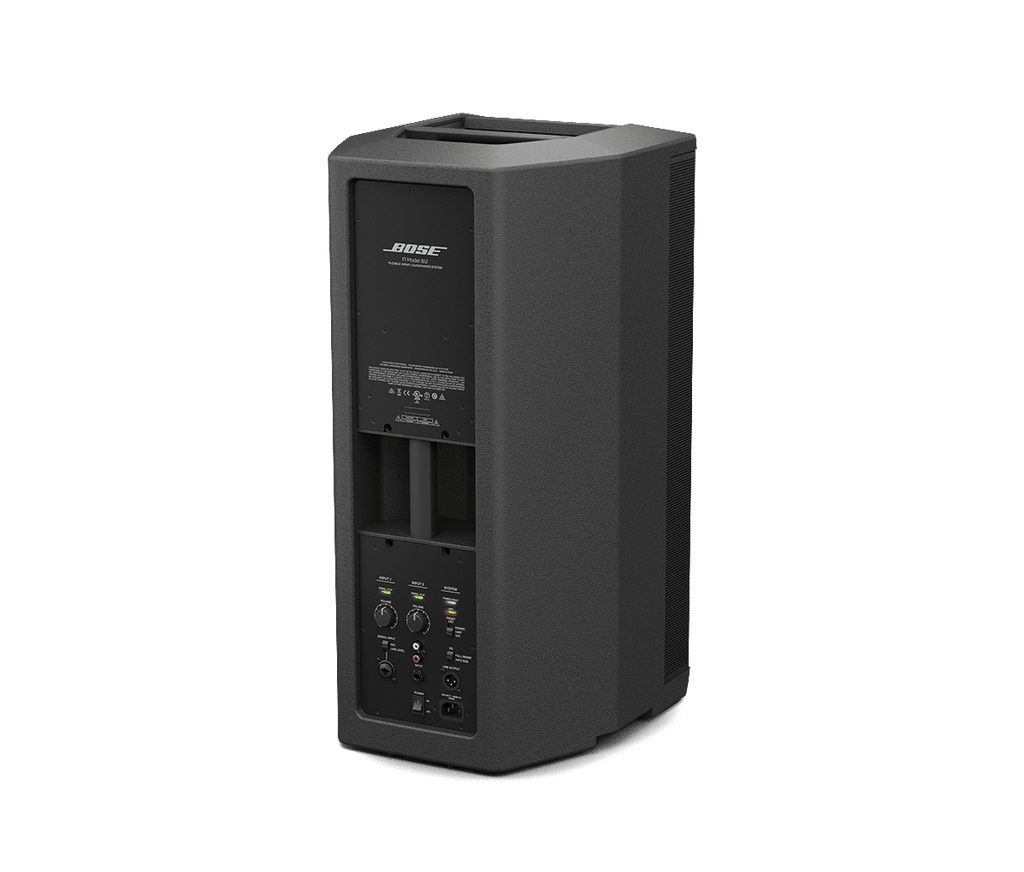

Easy travel

And now getting there is easier, too. The loudspeaker and subwoofer feature strategically placed handles for easy transport and highly durable, lightweight composite enclosures to ensure easy transport.

Features

• Portable, standalone design with built-in 1000-watt amplifier and nine transducers: eight high-output drivers and a 12-inch high-power woofer

• Lower crossover point than conventional loudspeakers for clear and natural vocals even at high volumes

• Flexible Array technology: easily adjust coverage pattern — Straight, C, J, or Reverse J — to optimize sound for different spaces: floor level, on stage, for raked seats or bleachers, and more

• Automatic EQ adjusts to maintain optimum tonal balance for each coverage pattern

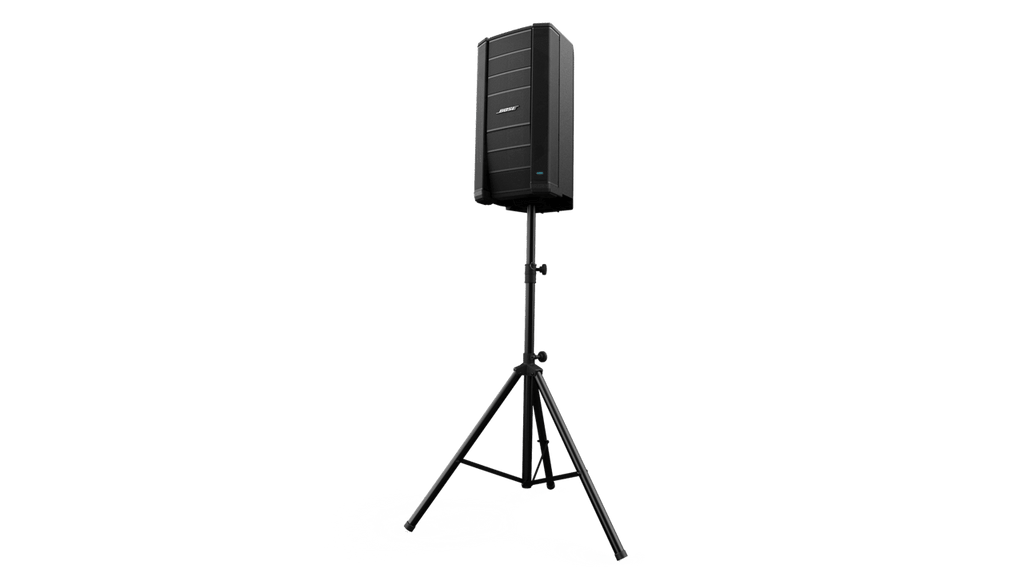

• Built-in handles for easy transport and compatible with standard 35 mm speaker stands (sold separately)

• Optional Bose F1 Subwoofer (sold separately) for even more low-frequency response

• Optional Bose F1 Subwoofer (sold separately) for even more low-frequency response
  Integrated speaker stand for F1 Model 812
  Built-in 1000-watt amplifier
  Hidden cable channels for clean appearance
  Built-in handles for easy transport

Applications

• Live music performances
• Bands of all styles
• Solo musicians
• Mobile DJs
• Houses of worship
• Schools and universities
• Resorts and hospitality venues
• Business presentations

Specifications

AMPLIFICATION

• Number of Channels

• 2

• Power Class

• Class D

• THD+N

• 0.1% maximum (30 Hz – 15 kHz)

AUDIO INPUTS, ANALOG

• Input Channels

• 2

• Connectors

• (1) XLR-1/4-in combo, (1) RCA stereo pair, (1) 1/4-in TS/TRS

• Sensitivity Options

• -Infinity to +34 dB, line / -Infinity to +54 dB, mic, -Infinity to +26 dB, RCA / -Infinity to +20 dB, 1/4-in

• Phantom Power

• No

ELECTRICAL

• AC Power Connector

• IEC

• AC Power Input

• 100-240 V, 50/60 Hz

GENERAL

• Software Applications

• No

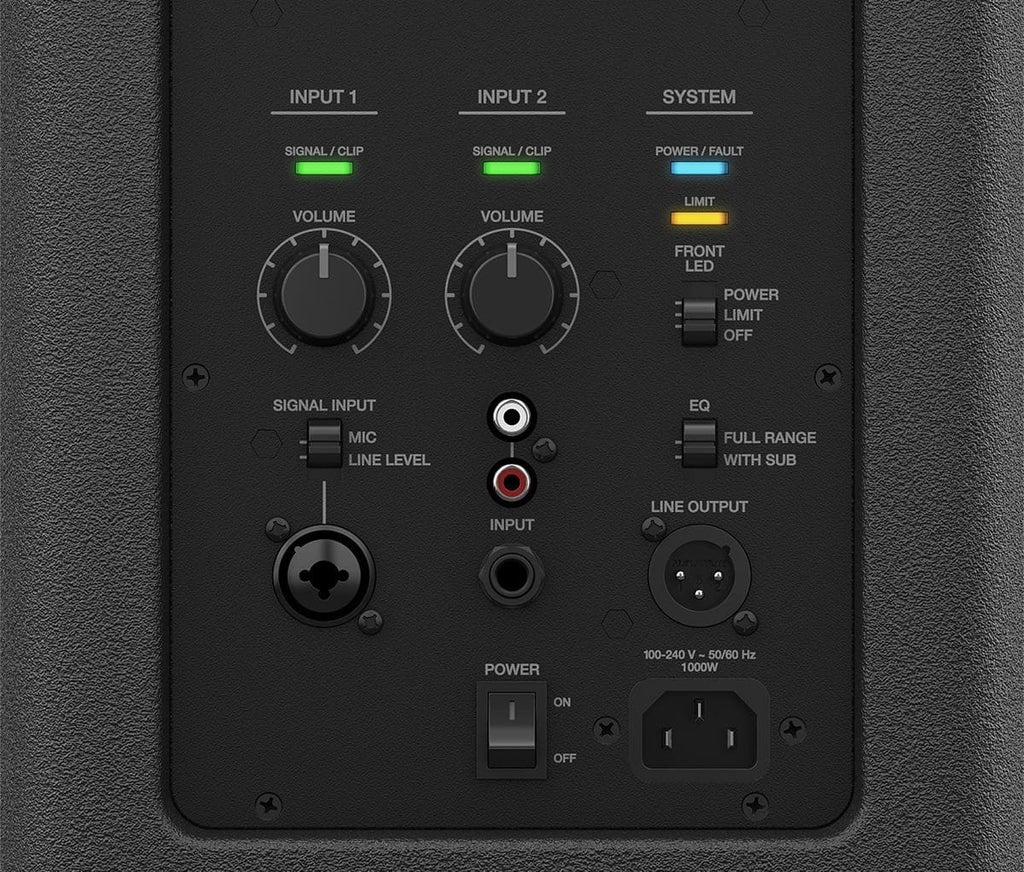

INDICATORS AND CONTROLS

• Controls, Rear Panel

• Volume level, Signal input select, Front LED function select, EQ V

• LED Status Indicators

• (1) power/fault LED, (2) signal/clip LEDs, (1) limit LED, (1) configurable front-panel LED

INTEGRATED DSP

• DSP-Enabled

• Yes

• Processing Functions

• Output EQ, limiter

PHYSICAL

• Colors

• Black

• Enclosure Material

• High impact composite materials

• Grille

• Steel, powder-coated finish

• Operating Temperature Range

• 0 °C to 50 °C (32 °F to 122 °F)

• Product Dimensions (H×W×D)

• 26.1 in × 14.6 in × 13.1 in (663 mm × 371 mm × 333 mm)

• Net Weight

• 44.5 lb / 20.2 kg

• Shipping Dimensions (H×W×D)

• 32.5 in × 20.0 in × 18.5 in (826 mm × 508 mm × 470 mm)

• Storage Temperature

• -30 °C to 70 °C (-22 °F to 158 °F)

• Shipping Weight

• 55.0 lb (24.9 kg)

PERFORMANCE

• Frequency Range (-10 dB)

• 43 Hz – 20 kHz

• Coverage, Horizontal

• 100°

• Calculated Maximum SPL @ 1 m

• 132 dB

• Power Handling, Peak

• 1000 W

• Coverage, Vertical

• 40°

TRANSDUCERS

• Crossover

• 600 Hz, 4th-order Butterworth

• Driver Protection

• Dynamic limiter

• High-Frequency

• 8 × 2.25 in (57 mm) mid-high-frequency drivers

• Low-Frequency

• 1 × 12 in (305 mm) low-frequency driver
